MCX Conformance

Protocol Conformance Test Suites for MCX

Overview

The Valid8 MCX Conformance Test Suites are suitable for testing compliance to standards for MC-PTT, MC-Video, MC-Data protocols and interfaces in the MCX domain

What we Can Do For You

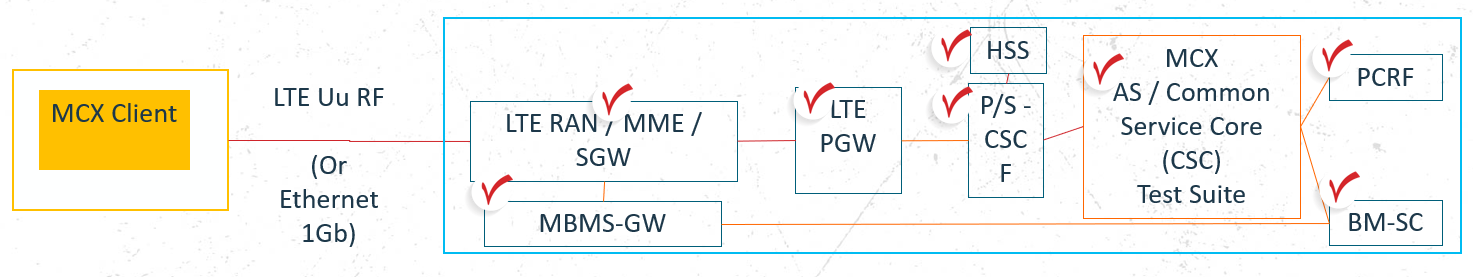

The Conformance solution is capable of simulating and testing various different devices:

It can simulate

Server
Client
IWF (P25)

It can test

Client
Server
IWF

Why we’re Different

Scalable software-based architecture can run on a range of hardware from COTS and high-end customer provided hardware to Virtual Machines and the Cloud (e.g. Amazon AWS) for maximum versatility and performance
Web-based UI is easy to learn
HTTP API enable integration with automation test systems and other equipment
Stateful modeling provides accurate emulation of network elements

Features

Pre-made test scenarios and procedures
PASS / FAIL analysis, including plain English diagnostic reason
Valid / Invalid testing
Customizable source-code
User-configurable proprietary messages, IEs, headers
Animated test results action-replay
Easy to configure
Automatic execution of test batches
UDP, TCP, SCTP transport layer IPv4/IPv6 support
Suitable for Development and QA test lab environments, verifying protocol compliance, negative and robustness testing, Regression testing and Reproducing customer issues in the field

Related Video

MCPTT Client Test Cases – Details

Valid8 has implemented the following 3GPP TS 36.579-2 executable tests:

Test Case	Description	Feature	DUT	Release
5.1	MCPTT Client Configuration / Configuration / Authentication / User Authorisation / UE Configuration / User Profile	MCPTT	Client	Rel 16
5.3	MCPTT Client Configuration / Configuration / Group Affiliation / Remote change / De-affiliation / Home MCPTT system	MCPTT	Client	Rel 16
5.4	MCPTT Client Configuration / Configuration / Pre-established Session Establishment / Pre-established Session Modification / Pre-established Session Release	MCPTT	Client	Rel 14
5.5	MCPTT Client Configuration / Determination of MCPTT Service Settings / Current Active MCPTT Settings / De-subscribe	MCPTT	Client	Rel 16
5.7	MCPTT Client Configuration / Configuration / Subscription to group dynamic data / Desubscribe	MCPTT	Client	Rel 16
5.8	MCPTT Client Configuration / Configuration / Functional Alias / Functional alias status determination / Activate functional alias / Deactivate functional alias	MCPTT	Client	Rel 16
6.1.1.1	MCPTT Client On-network On-demand Pre-arranged Group Call / On-network / On-demand Pre-arranged Group Call / Automatic Commencement Mode / Floor Control / Upgrade to Emergency Group Call / Cancel Emergency State / Upgrade to Imminent Peril Group Call / Cancel Imminent Peril State / Client Originated (CO)	MCPTT	Client	Rel 16
6.1.1.2	MCPTT Client On-network On-demand Pre-arranged Group Call / On-network / On-demand Pre-arranged Group Call / Automatic Commencement Mode / Floor Control / Upgrade to Emergency Group Call / Cancel Emergency State / Upgrade to Imminent Peril Group Call / Cancel Imminent Peril State / Client Terminated (CT)	MCPTT	Client	Rel 16
6.1.1.3	MCPTT Client On-network On-demand Pre-arranged Group Call / Manual Commencement Mode / Client Originated (CO)	MCPTT	Client	Rel 16
6.1.1.4	MCPTT Client On-network On-demand Pre-arranged Group Call / Manual Commencement Mode / Client Terminated (CT)	MCPTT	Client	Rel 16
6.1.1.5	MCPTT Client On-network On-demand Pre-arranged Group Call using pre-established session / Client originated Pre-established Session Release with associated MCPTT session / Client Originated (CO)	MCPTT	Client	Rel 16
6.1.1.6	MCPTT Client On-network On-demand Pre-arranged Group Call using pre-established session / Automatic Commencement Mode / Server originated Pre-established Session Release with associated MCPTT session / Client Terminated (CT)	MCPTT	Client	Rel 16
6.1.1.7	MCPTT Client On-network On-demand Pre-arranged Group Call using pre-established session / Manual Commencement Mode / Client Terminated (CT)	MCPTT	Client	Rel 16
6.1.1.8	MCPTT Client On-network On-demand Pre-arranged Broadcast Group Call / Client Originated (CO)	MCPTT	Client	Rel 16
6.1.1.9	MCPTT Client On-network On-demand Pre-arranged Broadcast Group Call / Client Terminated (CT)	MCPTT	Client	Rel 16
6.1.1.10	MCPTT Client On-network On-demand Pre-arranged Broadcast Group Call With Temporary Group / Client Originated (CO)	MCPTT	Client	Rel 16
6.1.1.11	MCPTT Client On-network On-demand Pre-arranged Emergency Group Call / Client Originated (CO)	MCPTT	Client	Rel 16
6.1.1.12	MCPTT Client On-network On-demand Pre-arranged Emergency Group Call / Client Terminated (CT)	MCPTT	Client	Rel 16
6.1.1.13	MCPTT Client On-network On-demand Pre-arranged Imminent Peril Group Call / Client Originated (CO)	MCPTT	Client	Rel 16
6.1.1.14	MCPTT Client On-network On-demand Pre-arranged Imminent Peril Group Call / Client Terminated (CT)	MCPTT	Client	Rel 16
6.1.1.15	MCPTT Client On-network Emergency Alert / Cancel Emergency Alert / Client Originated (CO)	MCPTT	Client	Rel 16
6.1.1.16	MCPTT Client On-network Emergency Alert / Cancel Emergency Alert / Client Terminated (CT)	MCPTT	Client	Rel 16
6.1.1.17	MCPTT Client on-network operation Group Calls - Broadcast Group Call using pre-established session / Client originated Pre-established Session Release with associated MCPTT session / Client Originated (CO)	MCPTT	Client	Rel 16
6.1.1.18	MCPTT Client on-network operation Group Calls - Broadcast Group Call using pre-established session / Automatic Commencement Mode / Server originated Pre-established Session Release with associated MCPTT session / Client Terminated (CT)	MCPTT	Client	Rel 16
6.1.1.19	MCPTT Client on-network operation Group Calls - On-demand Pre-arranged Group Call / Active functional alias / Client Originated (CO)	MCPTT	Client	Rel 16
6.1.1.20	MCPTT Client on-network operation Group Calls - On-demand Pre-arranged Group Call / Multi Talker	MCPTT	Client	Rel 16
6.1.1.21	MCPTT Client on-network operation Group Calls - On-demand Pre-arranged Group Call / No Implicit Floor Control / Client Originated (CO)	MCPTT	Client	Rel 16
6.1.2.2	MCPTT Client on-network operation Group Calls - Chat Group Call / On-network / Chat Group Call Using Pre-established Session Including Emergency and Imminent Peril Calls / Client Server originated Pre-established Session Release with associated MCPTT session / Client Origination (CO)	MCPTT	Client	Rel 16
6.1.2.7	MCPTT Client on-network operation Group Calls - Chat Group Call / On-network / Chat Group Call / Emergency Group Call / Client Originated (CO)	MCPTT	Client	Rel 14
6.1.2.8	MCPTT Client on-network operation Group Calls - Chat Group Call / On-network / Chat Group Call / Emergency Group Call / Client Terminated (CT) .	MCPTT	Client	Rel 14
6.1.2.9	MCPTT Client on-network operation Group Calls - Chat Group Call / On-network / Chat Group Call / Imminent Peril Group Call / Client Originated (CO)	MCPTT	Client	Rel 14
6.1.2.10	MCPTT Client on-network operation Group Calls - Chat Group Call / On-network / Chat Group Call / Imminent Peril Group Call / Client Terminated (CT)	MCPTT	Client	Rel 14
6.1.2.11	MCPTT Client on-network operation Group Calls - Chat Group Call / On-network / Chat Group Call / Join Chat Group Session / Upgrade to Emergency / Cancel Emergency / Upgrade to Imminent Peril / Cancel Imminent Peril / Client Originated (CO)	MCPTT	Client	Rel 14
6.1.2.12	MCPTT Client on-network operation Group Calls - Chat Group Call / On-network / Chat Group Call / Join Chat Group Session / Upgrade to Emergency / Cancel Emergency / Upgrade to Imminent Peril / Cancel Imminent Peril / Client Originated (CT)	MCPTT	Client	Rel 14
6.1.2.13	MCPTT Client on-network operation Group Calls - Chat Group Call / On-network / Chat Group Call / Join Chat Group Session / Active functional alias / Client Originated (CO)	MCPTT	Client	Rel 15
6.1.2.14	MCPTT Client on-network operation Group Calls - Chat Group Call / On-network / Chat Group Call / Chat Group Call Using Pre-established Session / Active functional alias / Client Originated (CO)	MCPTT	Client	Rel 15
6.1.3.1	MCPTT Client on-network operation Group Calls - Conference Event Package / Subscription to Conference Event Package / Termination of subscription	MCPTT	Client	Rel 15
6.1.4.1	MCPTT Client on-network operation Group Calls - Remote Change of Selected Group / Selected Group Change of Targeted User / Client Originated (CO)	MCPTT	Client	Rel 15
6.1.4.2	MCPTT Client on-network operation Group Calls - Remote Change of Selected Group / Selected Group Change of Targeted User / Client Terminated (CT)	MCPTT	Client	Rel 15
6.1.5.1	MCPTT Client on-network operation Group Calls - Remotely initiated group call / Client Originated (CO)	MCPTT	Client	Rel 15
6.1.5.2	MCPTT Client on-network operation Group Calls - Remotely initiated group call / Client Originated (CT)	MCPTT	Client	Rel 15
6.2.1	MCPTT Client on-network operation Private Calls / On-network / Private Call / On-demand / Automatic Commencement Mode / With Floor Control / Upgrade to Emergency Call / Cancellation of Emergency on User request / Client Originated (CO)	MCPTT	Client	Rel 14
6.2.2	MCPTT Client on-network operation Private Calls / On-network / Private Call / On-demand / Automatic Commencement Mode / With Floor Control / Upgrade to Emergency Call / Cancellation of Emergency on User request / Client Terminated (CT)	MCPTT	Client	Rel 14
6.2.3	MCPTT Client on-network operation Private Calls / On-network / Private Call / On-demand / Automatic Commencement Mode / Without Floor Control / Client Originated (CO)	MCPTT	Client	Rel 14
6.2.4	MCPTT Client on-network operation Private Calls / On-network / Private Call / On-demand / Automatic Commencement Mode / Without Floor Control / Client Terminated (CT)	MCPTT	Client	Rel 14
6.2.5	MCPTT Client on-network operation Private Calls / On-network / Private Call / Emergency Private Call / On-demand / Automatic Commencement Mode / Force of automatic commencement mode / Without Floor Control / Client Originated (CO)	MCPTT	Client	Rel 14
6.2.6	MCPTT Client on-network operation Private Calls / On-network / Private Call / Emergency Private Call / On-demand / Automatic Commencement Mode / Force of automatic commencement mode / Without Floor Control / Client Terminated (CT)	MCPTT	Client	Rel 14
6.2.7	MCPTT Client on-network operation Private Calls / On-network / Private Call / On-demand / Manual Commencement Mode / Without Floor Control / Client Originated (CO)	MCPTT	Client	Rel 14
6.2.8	MCPTT Client on-network operation Private Calls /On-network / Private Call / On-demand / Manual Commencement Mode / Without Floor Control / Client Terminated (CT) .	MCPTT	Client	Rel 14
6.2.9	MCPTT Client on-network operation Private Calls / On-network / Private Call / Within a pre-established session / Automatic Commencement Mode / Without Floor Control / Client Originated (CO)	MCPTT	Client	Rel 14
6.2.10	MCPTT Client on-network operation Private Calls / On-network / Private Call / Within a pre-established session / Automatic Commencement Mode / Without Floor Control / Client Terminated (CT)	MCPTT	Client	Rel 14
6.2.11	MCPTT Client on-network operation Private Calls / On-network / Private Call / Within a pre-established session / Manual Commencement Mode / Without Floor Control / Release of the Call and the pre-established session / Client Terminated (CT)	MCPTT	Client	Rel 14
6.2.12	MCPTT Client on-network operation Private Calls / On-network / Private Call / Private Call Call-Back Request / Private Call Call-Back Cancel Request / Client Originated (CO) / Private call call-back fulfilment	MCPTT	Client	Rel 14
6.2.13	MCPTT Client on-network operation Private Calls / On-network / Private Call / Private Call Call-Back Request / Private Call Call-Back Cancel Request / Client Terminated (CT) / Private call call-back fulfilment	MCPTT	Client	Rel 14
6.2.14	MCPTT Client on-network operation Private Calls / On-network / Private Call / Ambient listening call / Remotely initiated Ambient listening call / Remotely initiated ambient listening call release / Success / Client Originated (CO) / Server initiated ambient call release	MCPTT	Client	Rel 14
6.2.15	MCPTT Client on-network operation Private Calls / On-network / Private Call / Ambient listening call / Remotely initiated Ambient listening call / Remotely initiated ambient listening call release / Success / Client Terminated (CT)	MCPTT	Client	Rel 14
6.2.16	MCPTT Client on-network operation Private Calls /On-network / Private Call / Ambient listening call / Locally initiated Ambient listening call / Locally initiated ambient listening call release / Success / Client Originated (CO) / Server initiated ambient call release	MCPTT	Client	Rel 14
6.2.17	MCPTT Client on-network operation Private Calls / On-network / Private Call / Ambient listening call / Locally initiated Ambient listening call / Locally initiated ambient listening call release / Success / Client Terminated (CT)	MCPTT	Client	Rel 14
6.2.18	MCPTT Client on-network operation Private Calls / On-network / Private Call / Ambient listening call / Remote initiated ambient listening call / Pre-established session / Ambient listening call release / Client Originated (CO)	MCPTT	Client	Rel 15
6.2.19	MCPTT Client on-network operation Private Calls / On-network / Private Call / Ambient listening call / Remote initiated ambient listening call / Pre-established session / Ambient listening call release / Client Originated (CT)	MCPTT	Client	Rel 15
6.2.20	MCPTT Client on-network operation Private Calls / On-network / Private Call / First-to-answer call / On-demand session / Client Originated (CO)	MCPTT	Client	Rel 15
6.2.21	MCPTT Client on-network operation Private Calls / On-network / Private Call / First-to-answer call / On-demand session / Client Terminated (CT)	MCPTT	Client	Rel 15
6.2.22	MCPTT Client on-network operation Private Calls / On-network / Private Call / First-to-answer call / Pre-established session / Client Originated (CO)	MCPTT	Client	Rel 15
6.2.23	MCPTT Client on-network operation Private Calls / On-network / Private Call / First-to-answer call / Pre-established session / Client Terminated (CT)	MCPTT	Client	Rel 15
6.2.24	MCPTT Client on-network operation Private Calls / On-network / Private Call / Remotely initiated private call / Client Originated (CO)	MCPTT	Client	Rel 15
6.2.25	MCPTT Client on-network operation Private Calls / On-network / Private Call / Remotely initiated private call / On-demand session / Client Terminated (CT)	MCPTT	Client	Rel 15
6.2.26	MCPTT Client on-network operation Private Calls / On-network / Private Call / Remotely initiated private call / Pre-established session/ Client Terminated (CT)	MCPTT	Client	Rel 15
6.3.1	MCPTT Client on-network operation Location / On-network / Location / Event Triggered Location Information report	MCPTT	Client	Rel 14
6.3.2	MCPTT Client on-network operation Location / On-network / Location/ On-demand Location Information Request	MCPTT	Client	Rel 14
6.4.1	MCPTT Client on-network operation MBMS / On-network / MBMS / MBMS Bearer Announcement / MBMS Bearer Listening Status / Transition to MBMS from Unicast / MBMS Floor Control / Transition to Unicast from MBMS	MCPTT	Client	Rel 14

‍

MCVideo Client Test Cases – Details

Valid8 has implemented the following 3GPP TS 36.579-6 executable tests:

Test Case	Description	Feature	DUT	Release
5.1	MCVideo Client Configuration / Configuration / Authentication / User Authorization / UE Configuration / User Profile / Key Generation	MCVideo	Client	Rel 14
5.2	MCVideo Client Configuration / Configuration / Group Creation / Group ReGroup Creation / Group ReGroup Teardown	MCVideo	Client	Rel 14
5.3	MCVideo Client Configuration / Configuration / Group Affiliation / Remote change / De-affiliation / Home MCVideo system	MCVideo	Client	Rel 14
5.4	MCVideo Client Configuration / Configuration / Determination of MCVideo Service Settings / Current Active MCVideo Settings / De-subscribe	MCVideo	Client	Rel 14
6.1.1.1	MCVideo Client On-Network Group Calls - Pre-arranged / On-network / On-demand Pre-arranged Group Call / Automatic Commencement Mode / Transmission Control / Upgrade to Emergency Group Call / Cancel Emergency State / Upgrade to Imminent Peril Group Call / Cancel Imminent Peril State / Client Originated (CO)	MCVideo	Client	Rel 14
6.1.1.2	MCVideo Client On-Network Group Calls - Pre-arranged / OOn-network / On-demand Pre-arranged Group Call / Automatic Commencement Mode / Reception Control / Upgrade to Emergency Group Call / Cancel Emergency State / Upgrade to Imminent Peril Group Call / Cancel Imminent Peril State / Client Terminated (CT).	MCVideo	Client	Rel 14
6.1.1.3	MCVideo Client On-Network Group Calls - Pre-arranged / On-network / On-demand Pre-arranged Group Call / Manual Commencement Mode / Client Originated (CO)	MCVideo	Client	Rel 14
6.1.1.4	MCVideo Client On-Network Group Calls - Pre-arranged / On-network / On-demand Pre-arranged Group Call / Manual Commencement Mode / Client Terminated (CT)	MCVideo	Client	Rel 14
6.1.1.5	MCVideo Client On-Network Group Calls - Pre-arranged / On-network / On-demand Pre-arranged Group Call / Emergency Group Call / Client Originated (CO)	MCVideo	Client	Rel 14
6.1.1.6	MCVideo Client On-Network Group Calls - Pre-arranged / On-network / On-demand Pre-arranged Group Call / Emergency Group Call / Client Terminated (CT)	MCVideo	Client	Rel 14
6.1.1.7	MCVideo Client On-Network Group Calls - Pre-arranged / On-network / On-demand Pre-arranged Group Call / Broadcast Group Call / Client Originated (CO)	MCVideo	Client	Rel 14
6.1.1.8	MCVideo Client On-Network Group Calls - Pre-arranged / On-network / On-demand Pre-arranged Group Call / Broadcast Group Call / Client Terminated (CT)	MCVideo	Client	Rel 14
6.1.1.9	MCVideo Client On-Network Group Calls - Pre-arranged / On-network / On-demand Pre-arranged Group Call / Broadcast Group Call with Temporary Group / Client Originated (CO)	MCVideo	Client	Rel 14
6.1.1.10	MCVideo Client On-Network Group Calls - Pre-arranged / On-network / On-demand Pre-arranged Group Call / Imminent Peril Group Call / Client Originated (CO)	MCVideo	Client	Rel 14
6.1.1.11	MCVideo Client On-Network Group Calls - Pre-arranged / On-network / On-demand Pre-arranged Group Call / Imminent Peril Group Call / Client Terminated (CT)	MCVideo	Client	Rel 14
6.1.1.12	MCVideo Client On-Network Group Calls - Pre-arranged / On-network / On-demand Pre-arranged Group Call / Transmission Control State Transitions / Client Originated (CO)	MCVideo	Client	Rel 15
6.1.1.13	MCVideo Client On-Network Group Calls - Pre-arranged / On-network / On-demand Pre-arranged Group Call / Reception Control State Transitions / Client Terminated (CT)	MCVideo	Client	Rel 15
6.1.2.1	MCVideo Client On-Network Group Calls - Chat Group Call / On-network / Chat Group Call / Join Chat Group Session / End Chat Group Call / Client Originated (CO)	MCVideo	Client	Rel 14
6.1.2.2	MCVideo Client On-Network Group Calls - Chat Group Call / On-network / Chat Group Call / Upgrade to Emergency Chat Group Call / Cancel Emergency Chat Group Call / Upgrade to Imminent Peril Chat Group Call / Cancel Imminent Peril Chat Group Call / Client Origination (CO)	MCVideo	Client	Rel 14
6.1.2.3	MCVideo Client On-Network Group Calls - Chat Group Call / On-network / Chat Group Call / Upgrade to Emergency Chat Group Call / Cancel Emergency Chat Group Call / Upgrade to Imminent Peril Chat Group Call / Cancel Imminent Peril Chat Group Call / Client Terminated (CT)	MCVideo	Client	Rel 14
6.1.2.4	MCVideo Client On-Network Group Calls - Chat Group Call / On-network / Chat Group Call / Emergency Call / Imminent Peril Call / Client Terminated (CT)	MCVideo	Client	Rel 14
6.1.2.5	MCVideo Client On-Network Group Calls - Chat Group Call / On-network / Chat Group Call / Emergency Call / Imminent Peril Call / Client Originated (CO)	MCVideo	Client	Rel 15
6.1.3.1	MCVideo Client On-Network Group Calls - Chat Group Call / On-network / Conference Event Package / Subscription to Conference Event Package / Termination of subscription	MCVideo	Client	Rel 15
6.1.4.1	MCVideo Client On-Network Group Calls - Chat Group Call / On-network / Remote Change of Selected Group / Selected Group Change of Targeted User / Client Originated (CO)	MCVideo	Client	Rel 15
6.1.4.2	MCVideo Client On-Network Group Calls - Chat Group Call / On-network / Remote Change of Selected Group / Selected Group Change of Targeted User / Client Terminated (CT)	MCVideo	Client	Rel 15
6.2.1	MCVideo Client Private Calls / On-network / Chat Group Call / Emergency Call / Imminent Peril Call / Client Terminated (CT)	MCVideo	Client	Rel 14
6.2.2	MCVideo Client Private Calls / On-network / Chat Group Call / Emergency Call / Imminent Peril Call / Client Terminated (CT)	MCVideo	Client	Rel 14
6.2.3	MCVideo Client Private Calls / On-network / Private Call / On-demand / Automatic Commencement Mode / Without Transmission Control / Client Originated (CO)	MCVideo	Client	Rel 14
6.2.4	MCVideo Client Private Calls / On-network / Private Call / On-demand / Automatic Commencement Mode / Without Transmission Control / Client Terminated (CT)	MCVideo	Client	Rel 14
6.2.5	MCVideo Client Private Calls / On-network / On-network / Private Call / Emergency Private Call / On-demand / Automatic Commencement Mode / Force of Automatic Commencement Mode / Without Transmission Control / Client Originated (CO)	MCVideo	Client	Rel 14
6.2.6	MCVideo Client Private Calls / On-network / Private Call / Emergency Private Call / On-demand / Manual Commencement Mode / Force of automatic commencement mode / Without Transmission Control / Client Terminated (CT)	MCVideo	Client	Rel 14
6.2.7	MCVideo Client Private Calls / On-network / Private Call / On-demand / Manual Commencement Mode / Without Transmission Control / Client Originated (CO)	MCVideo	Client	Rel 14
6.2.8	MCVideo Client Private Calls / On-network / Private Call / On-demand / Manual Commencement Mode / Without Transmission Control / Client Terminated (CT)	MCVideo	Client	Rel 14

‍

MCData Client Test Cases – Details

Valid8 has implemented the following 3GPP TS 36.579-7 executable tests:

Test Case	Description	Feature	DUT	Release
5.1	MCData Client Configuration / Configuration / Authentication / User Authorization / UE Configuration / User Profile / Key Generation	MCData	Client	Rel 14
5.2	MCData Client Configuration / Configuration / Group Creation / Group ReGroup Creation / Group ReGroup Teardown	MCData	Client	Rel 14
5.3	MCData Client Configuration / Configuration / Group Affiliation / De-affiliation / Home MCData system	MCData	Client	Rel 14
5.4	MCData Client Configuration / Configuration / Determination of MCData Service Settings / Current Active MCData Settings / De-subscribe On-Network Test Scenarios	MCData	Client	Rel 14
6.1.1	MCData On-Network - Short Data Service / On-network / Short Data Service (SDS) / Standalone SDS Using Signalling Control Plane / One-to-one Standalone SDS / Client Originated (CO)	MCData	Client	Rel 14
6.1.2	MCData On-Network - Short Data Service / On-network / Short Data Service (SDS) / Standalone SDS Using Signalling Control Plane / One-to-one Standalone SDS / Client Terminated (CT)	MCData	Client	Rel 14
6.1.3	MCData On-Network - Short Data Service / On-network / Short Data Service (SDS) / Standalone SDS Using Signalling Control Plane / Group Standalone SDS / Client Originated (CO)	MCData	Client	Rel 14
6.1.4	MCData On-Network - Short Data Service / On-network / Short Data Service (SDS) / Standalone SDS Using Signalling Control Plane / Group Standalone SDS / Client Terminated (CT)	MCData	Client	Rel 14
6.1.5	MCData On-Network - Short Data Service / On-network / Short Data Service (SDS) / Standalone SDS Using Media Plane / One-to-one Standalone SDS / Client Originated (CO)	MCData	Client	Rel 14
6.1.6	MCData On-Network - Short Data Service / On-network / Short Data Service (SDS) / Standalone SDS Using Media Plane / One-to-one Standalone SDS / Client Terminated (CT)	MCData	Client	Rel 14
6.1.7	MCData On-Network - Short Data Service / On-network / Short Data Service (SDS) / Standalone SDS Using Media Plane / Group Standalone SDS / Client Originated (CO)	MCData	Client	Rel 14
6.1.8	MCData On-Network - Short Data Service / On-network / Short Data Service (SDS) / Standalone SDS Using Media Plane / Group Standalone SDS / Client Terminated (CT)	MCData	Client	Rel 14
6.1.9	MCData On-Network - Short Data Service / On-network / Short Data Service (SDS) / SDS Session / One-to-one SDS Session / Client Originated (CO)	MCData	Client	Rel 14
6.1.10	MCData On-Network - Short Data Service / On-network / Short Data Service (SDS) / SDS Session / One-to-one SDS Session / Client Terminated (CT)	MCData	Client	Rel 14
6.1.11	MCData On-Network - Short Data Service / On-network / Short Data Service (SDS) / SDS Session / Group SDS Session / Client Originated (CO)	MCData	Client	Rel 14
6.1.12	MCData On-Network - Short Data Service / On-network / Short Data Service (SDS) / SDS Session / Group SDS Session / Client Terminated (CT)	MCData	Client	Rel 14
6.2.1	MCData On-Network - File Distribution / On-network / File Distribution (FD) / FD Using HTTP / One-to-one Standalone FD / Before TDU2 Timers Expires / FD Accept with Disposition Request / FD Reject / FD Defer / FD Accept without Disposition Request / Client Originated (CO)	MCData	Client	Rel 14
6.2.2	MCData On-Network - File Distribution / On-network / File Distribution (FD) / FD Using HTTP / One-to-one Standalone FD / Before TDU2 Timers Expires / FD Accept with Disposition Request / FD Reject / FD Defer / FD Accept without Disposition Request / Client Terminated (CT) .	MCData	Client	Rel 14
6.2.3	MCData On-Network - File Distribution / On-network / File Distribution (FD) / FD Using HTTP / Group Standalone FD / Before TDU2 Timers Expires / FD Accept with Disposition Request / FD Reject / FD Defer / FD Accept without Disposition Request / Client Originated (CO)	MCData	Client	Rel 14
6.2.4	MCData On-Network - File Distribution / On-network / File Distribution (FD) / FD Using HTTP / Group Standalone FD / Before TDU2 Timers Expires / FD Accept with Disposition Request / FD Reject / FD Defer / FD Accept without Disposition Request / Client Terminated (CT)	MCData	Client	Rel 14
6.2.5	MCData On-Network - File Distribution / On-network / File Distribution (FD) / FD Using HTTP / One-to-one Standalone FD / After TDU2 Timers Expires / Client Originated (CO)	MCData	Client	Rel 14
6.2.6	MCData On-Network - File Distribution / On-network / File Distribution (FD) / FD Using HTTP / One-to-one Standalone FD / After TDU2 Timers Expires / Client Terminated (CT)	MCData	Client	Rel 14
6.2.7	MCData On-Network - File Distribution / On-network / File Distribution (FD) / FD Using HTTP / Group Standalone FD / After TDU2 Timers Expires / Client Originated (CO)	MCData	Client	Rel 14
6.2.8	MCData On-Network - File Distribution / On-network / File Distribution (FD) / FD Using HTTP / Group Standalone FD / After TDU2 Timers Expires / Client Terminated (CT)	MCData	Client	Rel 14
6.2.9	MCData On-Network - File Distribution / On-network / File Distribution (FD) / FD Using Media Plane / One-to-one Standalone FD / Client Originated (CO)	MCData	Client	Rel 14
6.2.10	MCData On-Network - File Distribution / On-network / File Distribution (FD) / FD Using Media Plane / One-to-one Standalone FD / Client Terminated (CT)	MCData	Client	Rel 14
6.2.11	MCData On-Network - File Distribution / On-network / File Distribution (FD) / FD Using Media Plane / Group Standalone FD / Client Originated (CO)	MCData	Client	Rel 14
6.2.12	MCData On-Network - File Distribution / On-network / File Distribution (FD) / FD Using Media Plane / Group Standalone FD / Client Terminated (CT)	MCData	Client	Rel 14

‍

MCPTT Server Conformance Test Cases – Details

Valid8 has implemented the following 3GPP TS 36.579-3 executable tests

(Combined Participating + Controlling Function):

Test Case	Description	Feature	DUT	Release
5.1	MCPTT Server - MCPTT Client / Configuration / Authentication / User Authorisation / UE Configuration / User Profile	MCPTT	Server	Rel 14
6.1	MCPTT Server - MCPTT Client /On-demand Pre-arranged Group Call / Automatic Commencement Mode / Floor Control	MCPTT	Server	Rel 14

(Controlling Function):

Test Case	Description	Feature	DUT	Release
7.1	MCPTT Server - MCPTT Server / On-demand Pre-arranged Group Call / Automatic Commencement Mode / Floor Control / Controlling Server	MCPTT	Server	Rel 14

(Participating Function):

Test Case	Description	Feature	DUT	Release
7.2	MCPTT Server - MCPTT Server / On-demand Pre-arranged Group Call / Automatic Commencement Mode / Floor Control / Participating Server	MCPTT	Server	Rel 14

Browser-based User Interface

Network Architecture

Additional Videos

Subsystems

Valid8 MCX Conformance is comprised of multiple subsystems that can be activated as needed to test compliance. Traffic can be captured through the use of a remote capture tool such as Wireshark.

KPIs

Test Verdict - Pass, Fail or Inconclusive
Detailed message field validation

Configurable Parameters

IP address and port
Network layer- IPv4 / IPv6
Transport layer- UDP / TCP / SCTP / TLS
Phone numbers
Authentication - username and password
Unexpected message handling - Stop / Continue

Automation API

User commands can be fully automated using an HTTP API. This includes all control functions as well as collection of results and metrics. It can be integrated into any CI system including Jenkins, CircleCI, Gitlab and others. Our Autom8 Python framework is included to ease integration.

Scripting

The application can be edited directly in the browser using VTDL using Composer, a powerful development environment that includes error checking and a graphical view easing the creation and modification of scenarios. Codec Studio can be used to quickly build message templates from raw PDUs, as captured by tcpdump for example, to use in the scenarios.

PRODUCT OPTIONS

No items found.

Use Cases

UE Phone Under Test

For testing phones that have cellular data capability, the 5G 4G 3G Base Station Emulators can provide OTA testing capability through its built-in base station and core network emulator. It enables end-to-end testing.

Supported Scenarios:

Supports scenarios:

Power on
Attach
Detach
TAU
Data Connection
VoLTE (with IMS Core option)
SMS (with IMS Core option)

Some of the key capabilities introduced with the M5/M1 Mobile UE Tester Include:

Lower Cost Per Test
Increased Test Environment Flexibility
Comprehensive Test Menu
Actionable/Collaborative Reports

‍

End-to-end Over-the-Air performance test capability
Includes RF base station
Emulates all core network nodes and allows for data connection to external networks

MCX Client Under Test

For testing the MCX Client, the Valid8 Tester can generate SIP/HTTP/Floor Control calls to test conformance, performance and stability.

Supported Scenarios:

Bootstrap
Registration
INVITE Audio/Video/Data calls

MCX IWF Under Test

For testing the MCX - LMR IWF, the Valid8 Tester can generate SIP/HTTP/Floor Control calls to test conformance, performance and stability.

Supported Scenarios:

Bootstrap
Registration
INVITE Audio/Video/Data calls

MCX Server Under Test

For testing the MCX Server, the Valid8 Tester can generate SIP/HTTP/Floor Control calls to test conformance, performance and stability.

Supported Scenarios:

Client Server single-ended
Server to Server
Client end-to-end

Summary of Specifications

Specifications

MCX Client Conformance Suite

MCPTT conformance test suite - Client – 3GPP TS 36.579-2, rel 14
MCVideo conformance test suite - Client - 3GPP TS 36.579-6, rel 14
MCData conformance test suite - Client - 3GPP TS 36.579-7, rel 14

MCX Server Conformance Suite

MCPTT conformance test suite – Server - 3GPP TS 36.579-3, rel 13

MCX IWF Conformance Suite

MCPTT conformance test suite - IWF

‍

Product Details

Operating System

‍Protocol Engine (Linux-based)

User Interface

‍Browser-based, touch-optimized graphical user interface

Automation

‍HTTP API

Note:

Actual throughput levels over radio may vary based on the 3rd party device manufacturer and software versions. Valid8 product specifications are subject to change at any time without notice.
