MCX Server Emulator

Emulate MCX Server

Overview

The Valid8 MCX Server Emulator provides an all-in-one, cost-effective and ultra-portable MCX network for demonstration, testing and training purposes.

What It Can Do For You

Emulates all necessary modules for MC-PTT, MC-Video, MC-Data.

‍

Why It’s Different

Scalable software-based architecture can run on a range of hardware from COTS and high-end customer provided hardware to Virtual Machines and the Cloud (e.g. Amazon AWS) for maximum versatility and performance
Web-based UI is easy to learn
HTTP API enable integration with automation test systems and other equipment
Stateful modeling provides accurate emulation of network elements

Features

Realistic network emulation handline 1,000s of devices and calls (scalable)
Emulates some or all of core network, exposing all internal interfaces
Emulators available per subsystem (CSCF Emulator, PCRF Emulator, etc.)
True stateful simulation
Signaling request/response messages for call handling, authentication, etc.
Report on media received, call connect time, call duration, jitter, packet loss
Generate valid and invalid/negative messages and call-scenarios (fully editable scenarios)
Supports sending invalid messages including malformed, dropped, and mis ordered packets
Check parameters in messages from SUT and flag errors
3GPP-compliant interfaces
‍Alerts and notifications

Additional Videos

Subsystems

The Valid8 MCX Server Emulator is comprised of multiple subsystems that are available individually or in parallel, and are scalable to fit your needs. The individual emulators are controllable through their call controllers, and the traffic can be captured through use of a remote capture tool such as Wireshark.

KPIs

Registration Attempts
Registration Successes
Registration Failures
Call Attempts
Call Successes
Call Failures
Calls per second (CPS)
Call setup time
Call tear down time
Media Tx Packets (audio)
Media Rx Packets (audio)

Configurable Parameters

Call session length
Concurrent calls/endpoints
BHCA/CPS

Automation API

User commands can be fully automated using REST API. This includes performing all test control functions as well as collecting results and metrics. It can be integrated into virtually any CI system via the HTTP API, including Jenkins, CircleCI, Gitlab and others. Includes Autom8 Python framework.

Scripting

The application’s subsystems can be edited directly in the browser using TDL. The Message Workshop allows for the creation of test scenarios directly from the hex stream of a remote capture, while the Composer graphical editor (being deployed for all products in 2021) will allow for creating customized call scenarios by dragging and dropping the call flow to meet your test needs.

PRODUCT OPTIONS

No items found.

Use Cases

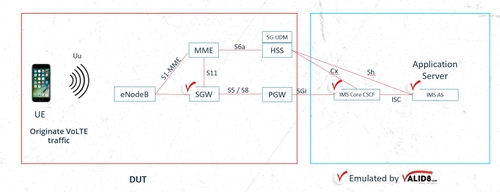

SIP Client Under Test

For testing the SIP Client, the Valid8 Tester can generate SIP calls to test performance and stability.

Supported Scenarios:

REGISTER
INVITE Audio/Video calls
MESSAGE
UPDATE
PRACK

Summary of Specifications

The Valid8 IMS Core Network Emulator is capable of simulating and testing several devices individually or in parallel and is scalable to fit your needs.
