M5 Mobile UE Tester

Base Station Emulator for 3G NodeB, 4G eNodeB, 5G gNodeB RAN and mobile core to test UE devices including CPE router, phone, modem & IoT devices

Overview

Valid8's Mobile UE Tester is a hardware-based solution that mimics 3G, 4G & 5G RAN along with a customizable core network emulator to test user equipment (UE) devices

What It Can Do For You

Lower Cost Per Test: Valid8 has continued to add automation and simplicity to their technology, driving down the cost per test.

Increased Test Environment Flexibility: By allowing the ability to configure the simulated environment to meet specific testing needs, users can safely perform penetration tests and other security tests that could not typically be performed on a public network.

Comprehensive Test Menu: Enables testing of a variety of data-centric cellular devices including: IoT,embedded, modems, routers & hotspots.

Actionable/Collaborative Reports : From a user-friendly interface screen users can quickly see test results, uncover any issues, and drill-down as needed.Historical tracking allows for trend analysis and reports. Reports can be easily shared with the rest of the team, or integrated into a 3rd party reporting tool.

Why It’s Different

  • Software based solution runs on high-end Valid8 hardware for RAN emulation
  • Components can also be run on customer hardware or in a Virtual Machine or the Cloud environment (e.g. Amazon AWS) allowing maximum versatility and performance
  • Web-based Graphical User Interface provides customer with intuitive, easy access via browser
  • API’s used (REST, HTTP) enable seamless integration with automation test systems and other equipment
  • Stateful modeling provides accurate emulation of network elements
  • Turnkey technology, including SIM cards to test UE CPE devices
  • All-in-one method to test any band up to 6GHz

Ordering INformation

M5 Hardware

m5-mobile-ue-tester (1 UE)

Emulation options:

hardware-5g-rf-module-int-mimo-2x2
hardware-4g-rf-module-int-mimo-2x2
hardware-3g-rf-femto-nodeb-module - external - Band 1 or 2/5
5g-sw-core-network-emulator-lite (AMF, SMF, UDR, AUSF, NRF)
4g-sw-core-network-emulator-lite (MME, HSS, PGW, SGW)
3g-sw-core-network-emulator-lite (MSC, HLR, SGSN, GGSN)
ims-core-network-base (CSCF, AS)

Protocol interface options:
(on request)

Miscellaneous options:
network-emulator-internal-impairment-module
Security, fuzzing, penetration test

Licensing options:
wireless-UE-upgrade-licenses-10 : 10 UEs
wireless-UE-upgrade-licenses-20 : 20 UEs
(others on request)
3CA
4CA
2x2 MIMO
Multiple eNodeBs on request
Multiple EPC network elements on request

Hardware

  • ‍Intel-based; scalable to meet performance needs

Operating System

  • ‍Protocol Engine (Linux-based)

User Interface

  • ‍Browser-based, touch-optimized graphical user interface

Automation

  • ‍HTTP API

Max output power

  • 31 mW (femto RF module option)

Connector types

  • ‍Femtocell: SMA female

Hardware dimensions

  • M5: 3.5"H x 17.2"W x 25.5”D; appx. 16.7lb

Power supply

  • M5: 520W AC to DC, 100 - 240v

Note

  • Actual throughput levels over radio may vary based on the 3rd party device manufacturer and software versions. Valid8 product specifications are subject to change at any time without notice.

Related Video

Features

  • Emulates the RAN with OTA connection available for UEs and IoT devices
  • Emulates some or all of the core network, exposing all internal interfaces
  • Test the bands that may be unavailable in your geographic region
  • Attach/Detach,IPv4/IPv6, Normal/Emergency, network rejection, create bearers, perform fuzzing
  • 3rd party OTT tests incl. iPerf, nmap etc.
  • Emulators available per subsystem (MME, AMF, HSS, PCRF, MSC, SGSN, SGW, PGW, etc.)
  • True stateful simulation
  • Handover support on X2 and S1 (requires 2 eNodeB option)
  • Signaling request/response messages for call handling, mobility management, authentication, QoS
  • Report on media received, call connect time, call duration, jitter, packet loss
  • Generate valid and invalid/negative messages and call-scenarios (fully editable scenarios)
  • Supports sending invalid messages including malformed, dropped, and misordered packets
  • Check parameters in messages from SUT and flag errors
  • 3GPP-compliant interfaces

LTE-M:

  • Release 14 compliant
  • Category M1 UE support
  • TM6 and TM9 support
  • FDD only (FDD and HD-FDD UEs are supported)
  • Support of multiple CE levels (only CE-Mode A is supported)
  • Support of message repetition for MPDCCH, PDSCH and PUSCH in full duplex (only MPDCCH, PDSCH and PUSCH supported)
  • Support of localized MPDCCH transmission
  • EPDCCH support for Category M1
  • No frequency hopping
  • Bandwidth must be >= 5 MHz for cells that also need to support Category 0 and above UEs

 NB-IOT:

  • Release 14 compliant
  • Single-tone and multi-tone category NB1 and NB2 UE support
  • 15 kHz and 3.75 kHz subcarrier spacing are supported
  • All operation modes (in-band, guard band and standalone) are supported
  • Multiple NB-IoT and LTE cells can be used at the same time in the same eNodeB
  • Support of multiple coverage levels
  • Support of all NPDCCH, NPDSCH, NPUSCH and NPRACH configurations
  • Support of control plane CIoT optimization
  • Support of multi-DRB mode

Subsystems

Options include

  • Base station (femto or emulated)
  • AMF
  • SMF
  • PCF
  • AUSF
  • UDM
  • UDR
  • N3IWF
  • EIR
  • MME
  • SGW
  • PGW
  • OCS
  • HSS
  • PCRF
  • ePDG
KPIs

Report Measurements

  • Network Registration Attach time after Power-On
  • Dedicated Bearer Setup Request Response Time
  • Network Deregistration Detach time after Power-Off
  • Authentication Request Response Time
  • Tracking Area Update Request Response Time
  • iPerf OTT QoS measurements

Report Counters

  • Attach Requests/Successes/Fails
  • Detach Requests/Successes/Fails
  • Dedicated Bearer Requests/Successes/Fails
  • Current Active Sessions/ Bearers
  • Number of Sessions/ Bearers Created
  • Attach Request Response Time
  • Protocol Errors
  • Message Timeouts
Configurable Parameters

Generic

  • Frequency Band
  • EARFN
  • Channel Bandwidth 1.4, 3, 5, 10, 15, 20
  • Includes CBRS band
  • TDD/FDD
  • Carrier Aggregation
  • PLMN Mobile Country Code (MCC), Mobile Network Code (MNC)
  • eNodeB Type IP Address S1 Interface
  • IP Address eNodeB
  • Primary DNS Address
  • Secondary DNS Adress
  • MAC Address Public Gateway
  • GTP Tunnel IP Address and Port
  • GTP Tunnel eNodeB IP Address
  • Integrity Algorithm
  • IP Address to assign UEs on LAN

CBRS

  • FCC ID
  • CBSD Category
  • Call Sign
  • User Id
  • Air Interface
  • CBSD Serial Number
  • Meas Capability
  • Installation Parameters
  • Grouping Parameters

Automation API

User commands can be fully automated using REST API. This includes performing all test control functions as well as collecting results and metrics. It can be integrated into virtually any CI system via the HTTP API, including Jenkins, CircleCI, Gitlab and others

Scripting

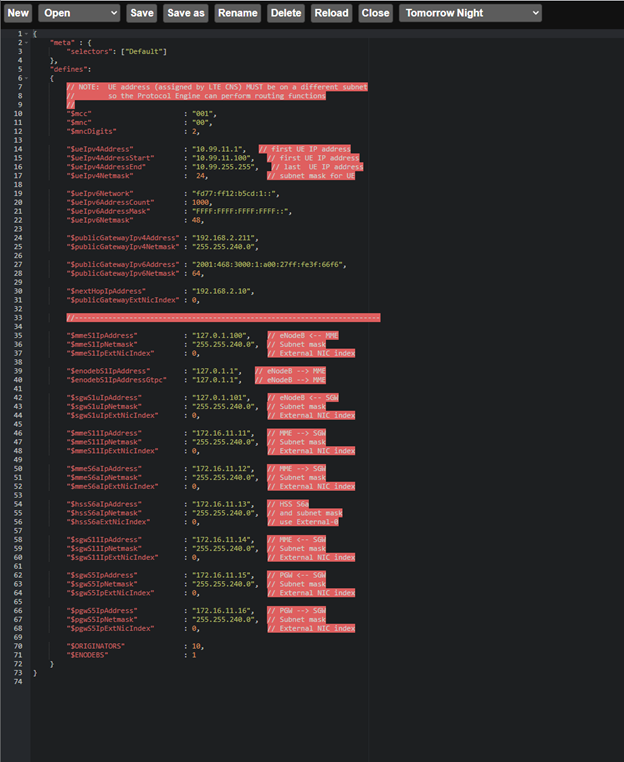

The application’s subsystems can be edited directly in the browser using TDL or by using the graphical tools. The Message Workshop allows for creating of test scenarios directly from the hex stream of a remote capture, while the Graphical Editor (on the feature roadmap for 3Q 2020) will allow for creating customized call scenarios by dragging and dropping the call flow to meet your test needs.

This is some text inside of a div block.

Use Cases

UE CPE Router Under Test

For testing CPE Router UE devices that have WiFi and cellular data capability, the 5G 4G 3G Base Station Emulators can provide OTA testing capability through its built-in base station and core network emulator. It enables end-to-end testing from WiFi to cellular.

Supported Scenarios:

Supports scenarios:

  • Power on
  • Attach
  • Detach
  • TAU
  • Data Connection

Some of the key capabilities introduced with the M5 Mobile UE Tester Include:

  • Lower Cost Per Test
  • Increased Test Environment Flexibility
  • Comprehensive Test Menu
  • Actionable/Collaborative Reports

  • End-to-end Over-the-Air performance test capability
  • Includes RF base station
  • Emulates all core network nodes and allows for data connection to external networks

UE IoT Device Under Test

For testing IoT devices that have cellular data capability, the 5G 4G 3G Base Station Emulators can provide OTA testing capability through its built-in base station and core network emulator. It enables end-to-end testing.

Supported Scenarios:

Supports scenarios:

  • Power on
  • Attach
  • Detach
  • TAU
  • Data Connection

Some of the key capabilities introduced with the M5 Mobile UE Tester Include:

  • Lower Cost Per Test
  • Increased Test Environment Flexibility
  • Comprehensive Test Menu
  • Actionable/Collaborative Reports

  • End-to-end Over-the-Air performance test capability
  • Includes RF base station
  • Emulates all core network nodes and allows for data connection to external networks

UE Phone Under Test

For testing phones that have cellular data capability, the 5G 4G 3G Base Station Emulators can provide OTA testing capability through its built-in base station and core network emulator. It enables end-to-end testing.

Supported Scenarios:

Supports scenarios:

  • Power on
  • Attach
  • Detach
  • TAU
  • Data Connection

Some of the key capabilities introduced with the M5 Mobile UE Tester Include:

  • Lower Cost Per Test
  • Increased Test Environment Flexibility
  • Comprehensive Test Menu
  • Actionable/Collaborative Reports

  • End-to-end Over-the-Air performance test capability
  • Includes RF base station
  • Emulates all core network nodes and allows for data connection to external networks
M5 Mobile UE Tester
M5 Mobile UE Tester

Summary of Specifications

Specifications

Protocols

  • 3GPP TS 23.401 (EUTRAN)
  • 3GPP TS 24.301 (NAS)
  • 3GPP TS 29.060 (GTPv1)
  • 3GPP TS 29.274 (GTPv2-C)
  • 3GPP TS 29.281 (GTPv1-U)
  • 3GPP TS 36.413 (S1AP)
  • 3GPP TS 36.414 (S1-U)
  • IETF RFC5246 (TLS, Protocol (1.0, 1.1, 1.2))
  • IETF RFC6101 (SSL, Protocol Version 3.0)
  • IETF RFC793 (TCP)
  • IETF RFC768 (UDP)
  • IETF RFC4960 (SCTP)
  • IETF RFC791 (IPv4)
  • IETF RFC2460 (IPv6)
  • IETF RFC3711 (SRTP)
  • IETF RFC1035 (DNS)
  • IETF RFC2131 (DHCP)
  • IETF RFC3550 (RTP/RTCP)
  • IETF RFC3261 (SIP)

UEs Supported

  • Up to 1,000 per unit

4G Technical Specifications

  • 3GPP Specification : LTE Release 8 support with features up to Release 14
  • Frequency bands : All sub-6GHz bands, 400 - 6000 Mhz; including Bands 1 - 44 plus unlicensed 5Ghz band and others
  • Bandwidth : 1.4, 3, 5, 10, 15 and 20 MHz, 200 KHz for NB-IoT
  • Carrier Aggregation: up to 4 carriers in DL and 2 carriers in UL
  • MIMO : DL MIMO support up to 4x4
  • Modulation schemes : up to 256 QAM in DL and UL
  • AS encryption and Integrity protection :AES, SNOW3G, ZUC
  • Handover : Intra-freq, inter-freq and inter-band Handovers
  • Group communication : eMBMS as per Rel10
  • IoT : LTE category 0 and 1, LTE-M cat M1, NB-IoT cat NB1 and NB2 UE categories.  NB-IoT subcarrier spacing 15 kHz & 3.75kHz, PSM and eDRX
  • UE Categories : Cat0, Cat1, cat3, cat4, cat5, cat6, cat7, cat9, cat 10, cat11, cat12, cat13
  • Number of active users : 1000+ UEs
  • Number of active cells : 4 cells MIMO 2x2 or 2 cell MIMO 4x4
  • IP traffic : simulation of TCP, UDP, RTP, HTTP and VoIP with configurable packet size as well as support of external applications such as iperf
  • FDD and TDD configurations
  • Handle several cells in intra-band or inter-band configurations
  • Transmission modes: 1 (single antenna) and 2x2 MIMO
  • Carrier Aggregation support for up to 5 carriers in DL and 3 in UL, with mixed FDD/TDD combinations in DL
  • 256QAM DL support for PDSCH and MBMS
  • RF power output < 10 dBm
  • Max RF input power: -10 dBm
  • 4 SMA female (TX1, TX2, RX1, RX2), AC coupled
  • 1 SMA female (GPS antenna with 3.3V DC power supply)
  • ADC/DAC Sample Rate: 61.44 MS/s
  • ADC/DAC Resolution: 12 bits
  • Frequency Accuracy: 2 ppm
  • LTE 20MHz 64QAM EVM < 2 %rms (f < 2.6 GHz)
  • LTE 20MHz 64QAM EVM < 4 %rms (f < 3.5 GHz)
  • Support of release 11 TDD special subframe configurations 7 and 9
  • WINNF-TS-0016

5G Technical Specifications

  • 3GPP Specification : Release 15
  • Frequency bands : FDD/TDD FR1 All sub-6GHz bands, 400 - 6000 Mhz; including Bands 1 - 44 plus unlicensed 5Ghz band and others
  • Bandwidth : up to 50 MHz
  • Carrier Aggregation: up to 4 carriers in DL and 2 carriers in UL
  • MIMO : DL MIMO support up to 4x4
  • Modulation schemes : up to 256 QAM in DL and UL
  • Subcarrier spacing : All SSB/data subcarrier spacing combination
  • Supported Modes : NSA and SA
  • NSA NR split bearer : 3, 3a, 3x
  • Use case : eMBB
  • Number of active users : 3 UE
  • Number of active cells : up to 3 5G cells and 3 4G cells

Product Details

Emulates base station and core to test the UE

Actual throughput levels over radio may vary based on the 3rd party device manufacturer and software versions. Valid8 product specifications are subject to change at any time without notice.

Valid8 exports its products strictly in accordance with all US Export Control laws and regulations which shall apply to any purchase or order. Specifications are subject to change without notice.

500 West Cummings Park, Suite 6550 Woburn, MA 01801
p: +1-855-482-5438
f: +1-781-996-3708
welcome@valid8.com
VALID8.COM

Ordering Information

M5 Hardware

m5-mobile-ue-tester (1 UE)

Emulation options:

hardware-5g-rf-module-int-mimo-2x2
hardware-4g-rf-module-int-mimo-2x2
hardware-3g-rf-femto-nodeb-module - external - Band 1 or 2/5
5g-sw-core-network-emulator-lite (AMF, SMF, UDR, AUSF, NRF)
4g-sw-core-network-emulator-lite (MME, HSS, PGW, SGW)
3g-sw-core-network-emulator-lite (MSC, HLR, SGSN, GGSN)
ims-core-network-base (CSCF, AS)

Protocol interface options:
(on request)

Miscellaneous options:
network-emulator-internal-impairment-module
Security, fuzzing, penetration test

Licensing options:
wireless-UE-upgrade-licenses-10 : 10 UEs
wireless-UE-upgrade-licenses-20 : 20 UEs
(others on request)
3CA
4CA
2x2 MIMO
Multiple eNodeBs on request
Multiple EPC network elements on request

Hardware

  • ‍Intel-based; scalable to meet performance needs

Operating System

  • ‍Protocol Engine (Linux-based)

User Interface

  • ‍Browser-based, touch-optimized graphical user interface

Automation

  • ‍HTTP API

Max output power

  • 31 mW (femto RF module option)

Connector types

  • ‍Femtocell: SMA female

Hardware dimensions

  • M5: 3.5"H x 17.2"W x 25.5”D; appx. 16.7lb

Power supply

  • M5: 520W AC to DC, 100 - 240v

Note

  • Actual throughput levels over radio may vary based on the 3rd party device manufacturer and software versions. Valid8 product specifications are subject to change at any time without notice.

Datasheet Page

Related Video

Related Solutions

M5 Mobile UE Emulator

M5 Hardware

mobile-ue-emulator-64
mobile-ue-emulator-128
mobile-ue-emulator-256

Software Only

mobile-ue-emulator-100-sw
mobile-ue-emulator-1000-sw
mobile-ue-emulator-10000-sw

Datasheet Page
MCX Load Tester

Product Name: MCPTT Load Tester

Product Code: mcptt-load-tester

Datasheet Page
IMS Core Network Emulator
  • Product Name: IMS Core Network Emulator
  • Product Code: ims-core-network-emulator

Datasheet Page
Mobile Core Network Emulator

Mobile Core Network Emulator

Options:

3g
4g
5g

mobile-sw-core-network-emulator-1000 : 1,000 sessions, base protocol, basic call
mobile-sw-core-network-emulator-10000 : 10,000 sessions, base protocol, basic call
mobile-sw-core-network-emulator-100000 : 100,000 sessions, base protocol, basic call
mobile-sw-core-network-emulator-1000000 : 1,000,000 sessions, base protocol, basic call
(others on request)

Miscellaneous options:
network-emulator-internal-impairment-module
Security, fuzzing, penetration test

Licensing options:
(not applicable)

Datasheet Page
Mobile Core Network Tester

Mobile Core Network Tester

Mobile Core Network Tester

Options:

3g
4g
5g

mobile-sw-core-network-tester-1000 : 1,000 sessions, base protocol, basic call
(others on request)

Miscellaneous options:
network-emulator-internal-impairment-module
Security, fuzzing, penetration test

Licensing options:
(not applicable)

Datasheet Page
Simulators & Test Suites

Product Code:
sw-simulators : Simulation application

Test Suites:
sw-simulators-mobile-security-5g
sw-simulators-mobile-security-4g
sw-simulators-mobile-security-3g
sw-simulators-mobile-performance-5g
sw-simulators-mobile-performance-4g
sw-simulators-mobile-performance-3g
sw-simulators-cap
sw-simulators-coap
sw-simulators-diameter
sw-simulators-radius
sw-simulators-megaco
sw-simulators-gtp
sw-simulators-s1ap
sw-simulators-sigtran
sw-simulators-sip
(others on request)

Datasheet Page
Loaders

Product Codes:
Base loader:

  • loaders-mobile-basic1-tiny (10 instances, 1gbps)
  • loaders-mobile-basic1-small (1000 instances, 1gbps)
  • loaders-mobile-basic1-medium (10000 instances, 1gbps)
  • loaders-mobile-basic1-large (100000 instances, 1gbps)
  • loaders-mobile-pro1-small (1000 instances, 10gbps)
  • loaders-mobile-pro2-medium (10000 instances, 10gbps)
  • loaders-mobile-pro2-large (100000 instances, 100gbps)

Applications (requires Protocol Engine and Base Loader):

  • loaders-diameter - Traffic generation of Diameter towards DUT server
  • loaders-radius - Traffic generation of Radius towards DUT server
  • loaders-mobile-3g-iucs-iups-nas - Traffic generation of 3G RANAP, SMS, MMS towards DUT mobile core
  • loaders-mobile-4g-s1ap-nas - Traffic generation of S1AP towards DUT mobile core
  • loaders-mobile-5g-ngap-nas - Traffic generation of NGAP towards DUT mobile core
  • loaders-mobile-gtp-c - Traffic generation of GTP-C towards DUT mobile core
  • loaders-mobile-gtp-u - Traffic generation of GTP-U towards DUT mobile core
  • loaders-rtp - Traffic generation of RTP towards DUT server
  • loaders-sip - Traffic generation of SIP towards DUT server


Datasheet Page

Navigate through All Solutions

No items found.
